20kHz Hall Effect Current Sensor UPS Servo Control With Electroplating

Name: 20kHz Hall Effect Current Sensor UPS Servo Control With Electroplating
Brand: Acrel
Price: 1 USD

Quality 20kHz Hall Effect Current Sensor UPS Servo Control With Electroplating for sale

Brand Name : Acrel

Model Number : AHKC-E

Certification : CE

Place of Origin : China

MOQ : 1 piece

Payment Terms : T/T

Supply Ability : 5000pcs/day

Delivery Time : 2-3 days

Measurement : AC, DC, pulse and other complex current

Rated Input : ±(50-500)A

Auxiliary Power : ±12V～±15V

Bandwidth : 0-20kHz

Accuracy class : 1.0

Temperature : -25℃-+70℃

Contact Now

General

Hall current sensors are mainly used to isolate and convert AC, DC, pulse and other complex signals. After signal control of current signals are converted according to the Hall Effect Theory, they can be directly acquired by AD, DSP, PLC, secondary instruments and other devices.

Hall current sensors are widely applicable for acquisition and feedback in the current monitoring, battery application, inverter, solar power management, direct current cabinet, DC motor drive, electroplating, welding, frequency converter, UPS servo control systems. They feature quick response, a wide range of measurements, high precision, strong overload capacity, good linearity and excellent anti-interference performance.

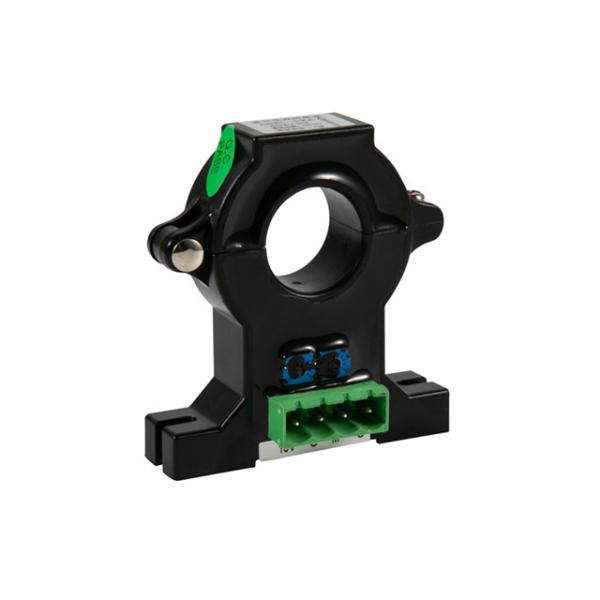

Appearance

20kHz Hall Effect Current Sensor UPS Servo Control With Electroplating

Technical parameter

Technical parameters		Data
		Split/closed open-loop	Hall (true RMS)
Output	Nominal value	Voltage: ±5V/±4V	Current: 4-20mA
	Zero offset voltage (current)	Voltage: ±20mV	Current:±0.05mA
	Offset voltage (current) drift	Voltage: ≤±1.0mV/℃	Current:±0.04mA/ ℃
	Linearity	≤0.2%FS
Power voltage		DC±15V	DC 24V
Bandwidth		0-20kHz
Response time		≤5us	≤1ms
Dielectric strength		Permissible 2500VAC between input/ output and power supply at the power frequency
Accuracy class		1.0
Ambient conditions	Temperature	Operating temperature:-25℃-+70℃; storage temperature: -40℃-+85℃
	Humidity	≤95%RH, no dew, no aggressive gas
	Altitude	≤3500m

Dimension

20kHz Hall Effect Current Sensor UPS Servo Control With Electroplating

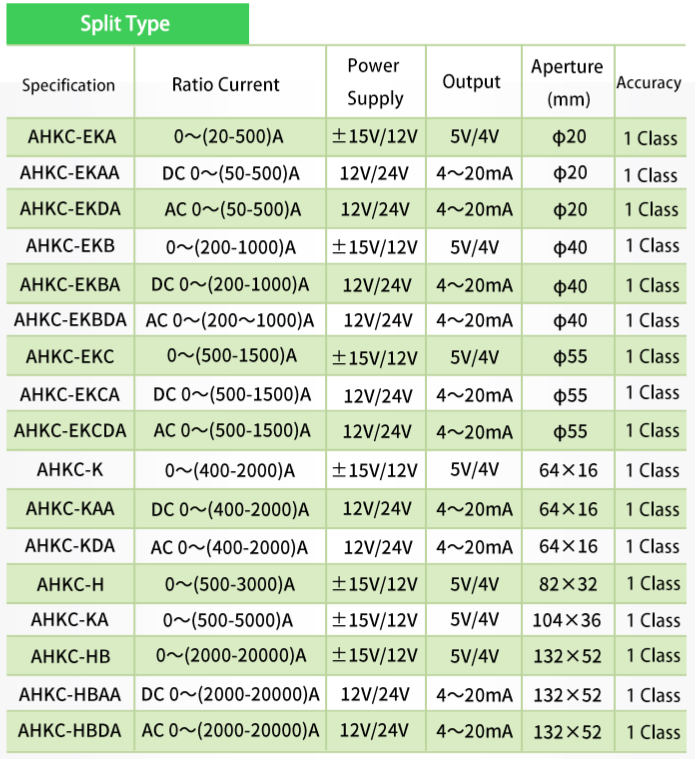

Selection

20kHz Hall Effect Current Sensor UPS Servo Control With Electroplating

Wiring

20kHz Hall Effect Current Sensor UPS Servo Control With Electroplating
